ALBERTA’S, SASKATCHEWAN AND MANITOBA'S SOURCE OF QUALITY COIL TUBING UNITS

COIL TUBING UNITS

We offer the following:

SHALLOW GAS DIVISION

Unit 16 2009 Kenworth T-800 placeholder

Unit 01 2000 Kenworth T-800

2002 Kenworth T-800 Truck

Unit 02 2002 Kenworth T-800

  • Single-tandem truck

  • 535 CFM compressor

  • Crane style rig

  • Capable of working with coil tubing sizes from .75” to 1.5”

  • 16,000 lb± push-pull model 40 injector

2004 Kenworth T-800 Truck

Unit 03 2004 Kenworth T-800

  • Tandem-tandem truck

  • 660 CFM compressor

  • Crane-style rig

  • Capable of working with coil tubing sizes from 1.25” to 1.5”

  • 30,000 lb± push-pull WD-30 injectors

1994 Kenworth T-450 Truck

Unit 04 1994 Kenworth T-450

  • Single-single truck

  • 330 CFM compressor unit for purging, pigging and pressure testing operations

2006 Kenworth T-800 Truck

Unit 05 2006 Kenworth T-800

  • Single-tridem truck

  • 660 CFM compressor

  • Crane-style rig

  • Capable of working with coil tubing sizes from 1.0” to 1.5”

  • 30,000 lb± push-pull WD-30 injectors

2001 Kenworth T-800 Truck

Unit 08 2001 Kenworth T-800

  • Tandem-tandem truck

  • 660 CFM compressor

  • Crane-style rig

  • 1 ½” coil tubing normally hauled, interchangeable reels for 1 ¼” through 1 ¾”

  • 40,000 lb± push-pull WD-30 injectors

2001 Kenworth T-800 Truck

Unit 14 2001 Kenworth T-800

  • Tandem-tandem truck

  • 660 CFM compressor

  • Crane-style dual drum dual injector class I rig

  • 30,000 lb± push-pull WD-30 injector (1.25” coil tubing side)

  • Model 40 injector (siphon string side .75” - 1.75”)

INTERMEDIATE COIL DIVISION

2007 Kenworth T-800 Truck

Unit 06 2007 Kenworth T-800

  • Tandem-tandem truck

  • 660 CFM compressor

  • 35-foot crane-style class I/II hybrid rig

  • 3,000 meters, 1 ½” coil tubing normally hauled, interchangeable reels for 1 ¼” through 1 ¾”

  • 40,000 lb± push-pull WD-30 injectors

2006 Kenworth T-800 Truck

Unit 07 2006 Kenworth T-800

  • Tandem-tandem truck

  • 660 CFM compressor

  • 35-foot crane-style class I/II hybrid rig

  • 2,300 meters, 1 ½” coil tubing normally hauled, interchangeable reels for 1 ¼” through 1 ¾”

  • 40,000 lb± push-pull WD-30 injector

Kenworth T-800 Truck

Unit 09 Kenworth T-800

  • Tandem-tridem truck with injector trailer

  • 15ksi 1502 integral frac iron

  • 10ksi 4 1/16” high-pressure hydraulic pack-off

  • 32 sq. ft. operating cab

  • Remote rig-up control panel

  • Level wind reel system

  • 80,000 lb± push-pull WD-40 injector with 100 ft. Reach standard capability

  • Automated hydraulic line reel

  • MEDCO coil tubing R.E.A.M. H.M.I. data acquisition system with real-time fatigue analysis

  • 3,200 meters of 2” coil tubing normally hauled, 3 interchangeable reels with capacities of 3,200 meters of 2” coil tubing and 2,600 meters of 2 3/8” coil tubing

2000 Kenworth T-800 Truck

Unit 10 2000 Kenworth T-800

  • Tandem-tridem truck

  • 30 square foot operating cab

  • MEDCO coil tubing REAM HMI Data Acquisition System with real-time fatigue analysis

  • 660 CFM compressor

  • 15ksi 1502 integral frac iron

  • 35-foot crane-style class I/II hybrid rig

  • Level wind reel system

  • 1,800 meters, 1  1/2” coil tubing normally hauled, interchangeable reels for 3/4” through 1 ¾”.

  • 40,000 lb± push-pull WD-40 injector

  • 5ksi 5 1/8” high-pressure hydraulic pack-off

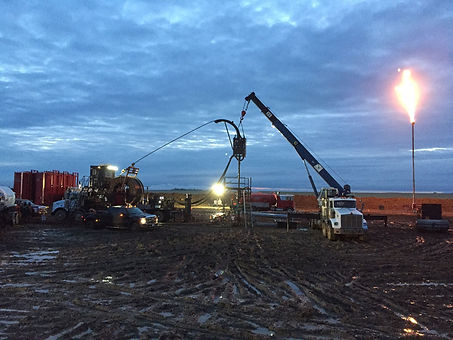

2005 Kenworth T-800 Truck

Unit 11 2005 Kenworth T-800

  • Tandem-tridem truck

  • 35 foot crane style intermediate rig

  • 15ksi 1502 integral frac iron

  • 5ksi 5 1/8” high-pressure hydraulic pack-off

  • 40 square foot operating cab

  • Remote rig-up control panel

  • Level wind reel system

  • 60,000 lb± push-pull WD-60 injector with 100 ft. Reach standard capacity

  • Hydraulic line reel

  • MEDCO coil tubing R.E.A.M. H.M.I. data acquisition system with real-time fatigue analysis

  • 3,200 meters of 2” coil tubing normally hauled

2005 Kenworth T-800 Truck

Unit 12 2005 Kenworth T-800

  • Tandem-tridem truck with injector trailer

  • 15ksi 1502 integral frac iron

  • 10ksi 4 1/16” high-pressure hydraulic pack-off

  • 40 square foot operating cab

  • Remote rig-up control panel

  • Level wind reel system

  • 100,000 lb± push-pull WD-100 injector with 100 ft. Reach standard capacity

  • Hydraulic line reel

  • MEDCO coil tubing R.E.A.M. H.M.I. data acquisition system with real-time fatigue analysis

  • 3,200 meters of 2 3/8” coil tubing normally hauled, 3 interchangeable reels with capacities of 4,000 meters of 2” coil tubing and 3,200 meters of 2 3/8” coil tubing

2009 Kenworth T-800 Truck placeholder

Unit 16 2009 Kenworth T-800

  • Tandem-tridem truck with injector trailer

  • 15ksi 1502 integral frac iron

  • 10ksi  4 1/16” high-pressure hydraulic pack-off

  • 52 square foot operating cab

  • Remote rig-up control panel

  • Level wind reel system

  • 100,000 lb± push-pull CPI-100 K injector with 100 ft.  reach standard capacity

  • Hydraulic line reel

  • MEDCO coil tubing R.E.A.M. H.M.I. data acquisition system with real-time fatigue analysis

  • 3,300 meters of 2 3/8” coil tubing normally hauled, 3 interchangeable reels with capacities of 3,200 meters of 2” coil tubing and 2,600 meters of 2 3/8” coil tubing

  • Electronic BOP system with remote panel system designed for class 3 and critical operations

2006 Western Star 4900TS Truck

Unit 17 2006 Western Star 4900TS

  • Tandem-tridem truck

  • 15ksi 1502 integral frac iron

  • 10ksi 4 1/16” high-pressure hydraulic pack-off

  • 40 square foot operating cab

  • Remote rig-up control panel

  • Level wind reel system

  • 60,000 lb± push-pull WD-60 injector with 100 ft. Reach standard capacity

  • Hydraulic line reel

  • MEDCO coil tubing R.E.A.M. H.M.I. data acquisition system with real-time fatigue analysis

  • 4 interchangeable reels with capacities of 4,600 meters of 1 ½” coil tubing, 3,400 meters of 2” coil tubing and 2,600 meters of 2 3/8” coil tubing

PUMPER UNITS

We offer the following pumper units:

T11 Pumper Trailer unit

Unit T11 #T11 Pumper Unit

  • Built in 2009, this tridem axled fifth wheel trailer unit mounted in a sea-can is capable of pumping at 2200 p.s.i., has a flow rate of 1bbl/min - 0.16m3/min, and contains a 4 m3 tank inside.

  • This unit works great with master valve changes and setting plugs making Maple Creek Endless Tubing Services Ltd. ideal for all abandonment needs.

2013 Western Star 4900TS Truck

Unit HO-1 2013 Western Star 4900TS

  • Tandem-tridem truck

  • 10ksi fluid pump/hot oiler unit - SJ petroleum machinery STP600S 10ksi triplex fluid pump

  • 7.5 MBTU Fabmaster burner

  • Flowserve Durco Mark 3 2k Mission/Centrifuge Pump

  • 3-compartment 10,000-litre Hamms tank

  • TCB fluid management system

  • On-board chemical injection pump

A picture of Catch Tank

CATCH TANKS

Maple Creek Endless Tubing Services Ltd.’s catch tanks vary in size from 11 m³ catch tanks to 6 m³ catch tanks all the way down to a 4 m³ catch tank with electric brakes specifically designed to be pulled with our crew trucks during road bans season and are also great for pigging operations.


SIDE SPOOLERS

Maple Creek Endless Tubing Services Ltd. has 5 side spoolers capable of 60 meters/min, a capacity of 3000 meters± of coil tubing, and 100% mobile and ready to go year-round.

A picture of Side Spooler

POWER SPOOLERS

Maple Creek Endless Tubing Services Ltd. has 2 power spooler units, 1 hydraulic driven from the coil unit’s power pack and 1 self-powered unit. They are capable of handling 136” wooden spools for landing specialized instrumentation strings or any other client-supplied hang-off operations.

A picture of Well-head Platform

WELL-HEAD PLATFORMS

Maple Creek Endless Tubing Services Ltd. now has company-owned well-head working platforms that are engineer certified to 1,500 pounds, making rig-up and rig-out operations and handling necessary tools/work strings safe and easy. Now you do not need to worry about expensive rentals on man-lifts.

Working platforms meet and exceed CAODC and OH&S legislations and are transported to site with the rigs BOP systems.

CRANE TRUCKS

We have the following crane trucks:

2005 Kenworth C-550 Crane truck

Unit C1 2005 Kenworth C-550

  • Tandem-tandem crane truck

  • Weldco Hydralift 40 ton 75’ reach crane

2006 Kenworth C-500 Crane truck

Unit C2 2006 Kenworth C-500

  • Tandem-tandem crane truck

  • Weldco Hydralift 40 ton 75’ reach crane

2012 Western Star 4900TS Crane truck

Unit C3 2012 Western Star 4900TS

  • Tandem-tridem crane truck

  • Terex CX6000 60 ton 110’ reach crane

MAINTENANCE

Maple Creek Endless Tubing Services Ltd.’s maintenance program is unsurpassed by many. Our stringent schedules, knowledgeable head mechanic, the experience of our rig and field supervisors, and the C.E.O. Dan Holmedal’s 30 years of experience with these trucks have made and will continue to make Maple Creek Endless Tubing Services Ltd.’s tubing units and trucks the most reliable, both out on the roads and in the fields.

A picture of heavy truck
